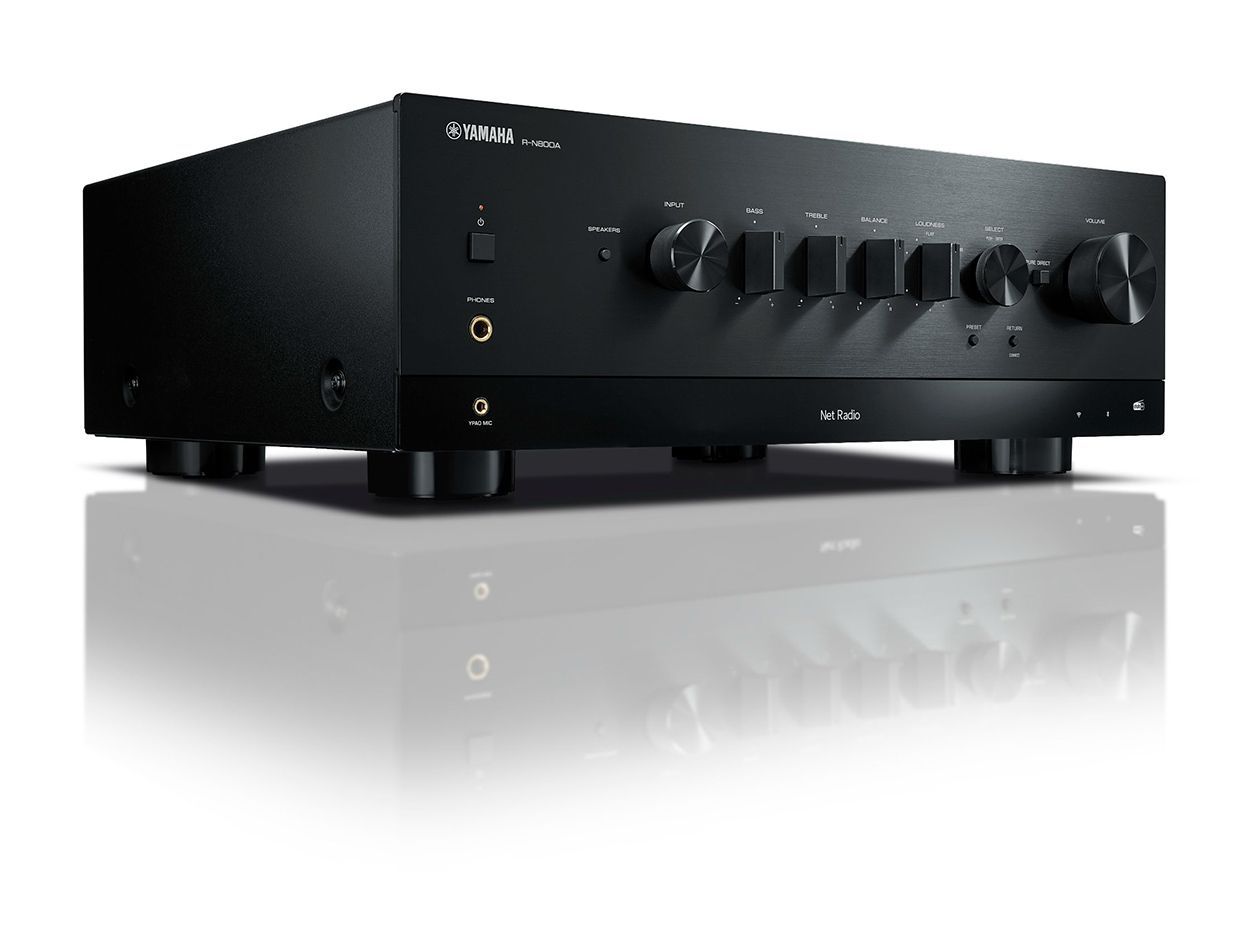

Yamaha R-N800A

HIGH-QUALITY SOUND FOR ALL YOUR ROOMS

The R-N800A Network Receiver delivers full-fledged, comprehensive music enjoyment with modern Hi-Fi style. It includes our original YPAO sound field correction technology to create an ideal listening environment right in your living room. From streaming services to high-resolution sound sources, you can immerse yourself in a wide range of entertainment with superb sound quality and yet a casual style.

• Authentic Hi-Fi quality with Top-ART mechanical structure and low impedance concept
• ESS SABRE ES9080Q Ultra DAC for superior S/N performance
• YPAO™-R.S.C. (Reflected Sound Control) and precision EQ for ideal listening environment.
• MusicCast lets you stream from your favourite music services.
• High-performance USB DAC function supports DSD 11.2 MHz native playback
  and 384 kHz playback.
• Bespoke phono input terminals to enjoy your vinyl record collection.
• Optical terminal to get your TV sound with Hi-Fi quality.

Specifications :

Output Power

Rated Output Power 100 W + 100 W (8 ohms, 20 Hz—20 kHz, 0.07 % THD)

Maximum Power 145 W + 145 W (8 ohms, 1 kHz, 10 % THD)

Dynamic Power per Channel

(8/6/4/2 ohms) 140 W / 170 W / 220 W / 290 W

Network

Wi-Fi YES

File Format MP3, WMA, MPEG4 AAC, WAV, FLAC,

AIFF, ALAC, DSD

Bluetooth® Version 4.2

Supported Codecs SBC, AAC* * Receiving only.

Terminals

Inputs Analog Audio :4 (CD, PHONO, LINE 1, LINE 2),

Digital Audio :4 (Optical 1, Optical 2, Coaxial 1, Coaxial 2),

USB DAC (Type B)

Outputs Speaker :2 (4 terminals), Subwoofer :1 Pre-out

Preout :1, Headphone :1

Others Trigger out :1, YPAO mic :1

General

Standby Power Consumption 1.6 W (Wired, Network standby on)

2.0 W (WiFi, Network standby on)

0.2 W (Normal standby off)

Dimensions (W x H x D) 435 x 151 x 395 mm (without antenna)

435 x 232 x 395 mm (with antenna up)

Weight 11.4 kg

Features

AirPlay 2 YES

YPAO YES

MusicCast YES

Gapless Playback YES

DAB+ Radio Tuner YES

App MusicCast CONTROLLER
