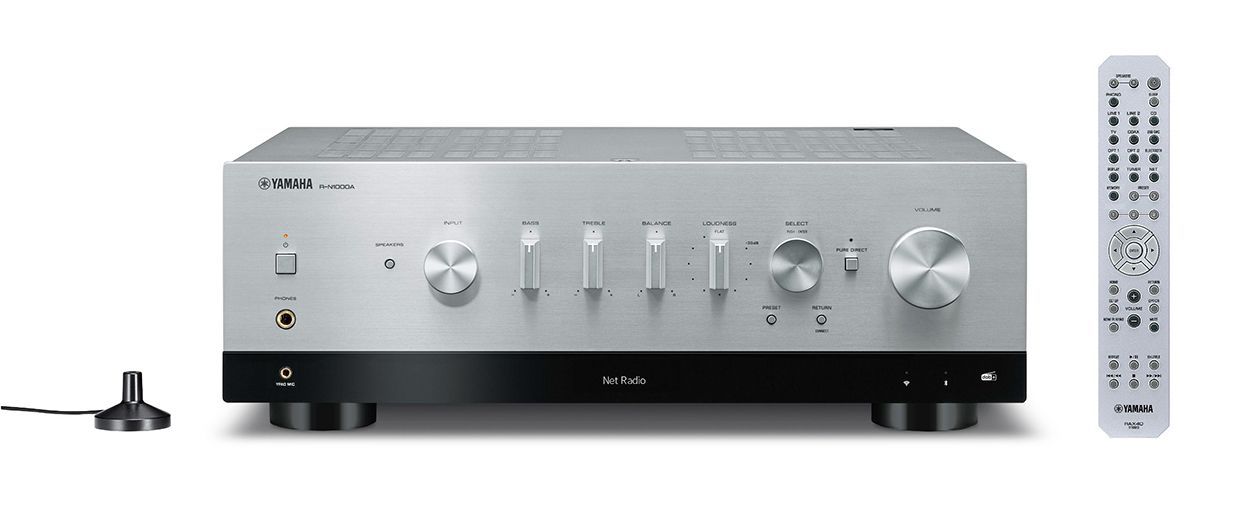

Yamaha R-N1000A

METICULOUSLY CRAFTED SOUND FOR YOUR LISTENING LIFESTYLE To those who relentlessly strive for the best sound. Our R-N1000A delivers total enjoyment of your music content with full-fledged Hi-Fi sound, drawing on the technologies of our top-end model. Featuring Yamaha's original YPAO sound field correction, high-capacity custom-made transformers, ultra-precise ESS DACs, and a host of other superior parts, the R-N1000A has everything necessary to produce high-quality sound to transform your usual living room into an extraordinary environment—where you can immerse yourself in the music and fully enjoy a space of pure sonic delight.

• Authentic Hi-Fi quality with Top-ART mechanical structure and top-quality audio parts
• Uses 3 Amtrans resistors (up from 2 in R-N800A) to improve expression and sound scale.
• Includes high-grade coupling capacitors from Toshin Kogyo
• Convenient HDMI ARC terminal for brilliant TV sound
• Double-bottom chassis with 1mm iron plate for further vibration elimination
• ESS SABRE ES9080Q Ultra DAC for superior S/N performance
• YPAO™-R.S.C. (Reflected Sound Control) and precision EQ for ideal listening environment.
• MusicCast lets you stream from your favourite music services.
• High-performance USB DAC function supports DSD 11.2 MHz native playback
  and 384 kHz playback.
• Original speaker terminals cut from pure brass for highly secure connection.
• Bespoke phono input terminals to enjoy your vinyl record collection.

Specifications:

Output Power

• Rated Output Power 100 W + 100 W (8 ohms, 20 Hz—20 kHz, 0.07 % THD)
• Maximum Power 145 W + 145 W (8 ohms, 1 kHz, 10 % THD)
• Dynamic Power per Channel (8/6/4/2 ohms) 140 W / 170 W / 220 W / 290 W

Network

• Wi-Fi YES
• File Format MP3, WMA, MPEG4 AAC, WAV, FLAC, AIFF, ALAC, DSD
• Bluetooth® Version 4.2
• Supported Codecs SBC, AAC* * Receiving only

Terminals

• Inputs Analog Audio :4 (CD, PHONO, LINE 1, LINE 2), Digital Audio :3 (Optical 1, Optical 2, Coaxial), HDMI ARC USB DAC (Type B)
• Outputs Speaker :2 (4 terminals), Subwoofer :1 Pre-out Headphone :1
• Others Trigger out :1, YPAO mic :1

General

• Standby Power Consumption 1.6 W (Wired, Network standby on) 2.0 W (WiFi, Network standby on) 0.2 W (Normal standby off)
• Dimensions (W x H x D) 435 x 152 x 395 mm (without antenna) 435 x 233 x 395 mm (with antenna up)
• Weight 12.3 kg

Features

• AirPlay 2 YES
• YPAO YES
• MusicCast YES
• Gapless Playback YES
• DAB+ Radio Tuner YES
• App MusicCast CONTROLLER
